316/316l 16 Gauge/mesh Stainless Steel Wire Mesh

Product Details

Brand Name: GX Mesh

Payment & Shipping Terms

Payment Terms: T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Description

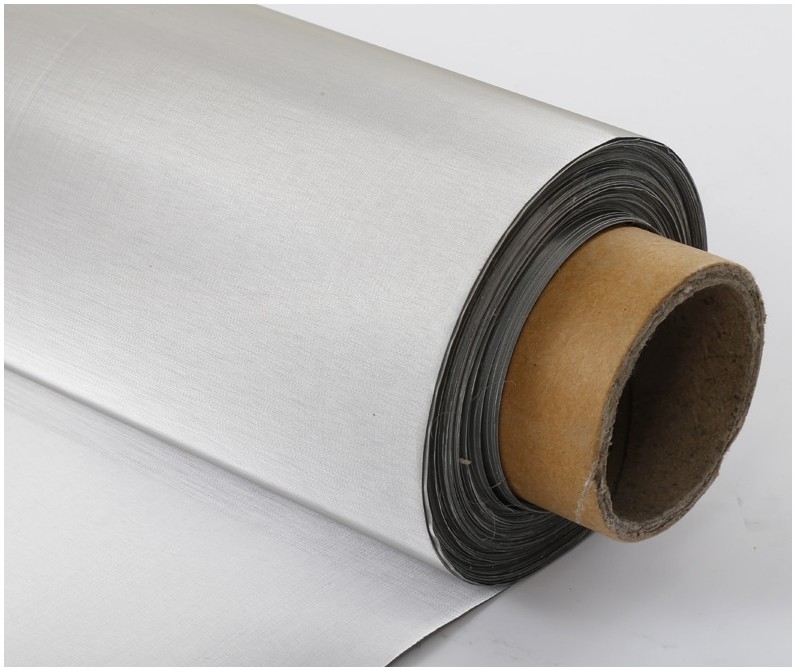

316/316l 16 Gauge/mesh Stainless Steel Wire Mesh

1. Material: Stainless steel wire mesh used AISI302, 304,304L,316,316L,430,309,310S,904L,2205,2507 etc stainless steel wire as raw material.

316/316l 16 Gauge/mesh Stainless Steel Wire Mesh 0

2. Wire Diameter: 0.015-1.8mm

3. Mesh count:

Plain weave can be woven up to 400 mesh.

Twill weave can be woven from 400 to 635mesh.

Dutch weave can be woven up to 3200mesh

Mesh description table

Mesh counts is the number of meshes per inch of length.

According to the 6 mesh as an example.

316/316l 16 Gauge/mesh Stainless Steel Wire Mesh 1

316/316l 16 Gauge/mesh Stainless Steel Wire Mesh 2

4. Aperture: 0.03-10mm

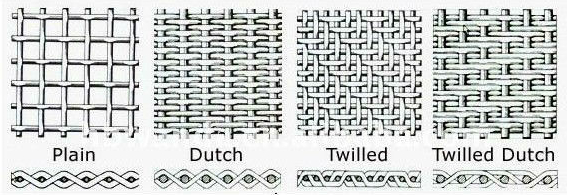

5. Weave pattern: Plain Weave ,Twill Weave,Dutch Weave,etc.

316/316l 16 Gauge/mesh Stainless Steel Wire Mesh 3

6. Features:

7. Application:

316/316l 16 Gauge/mesh Stainless Steel Wire Mesh 4

8. Specification:

Stainless Steel Wire Mesh
Mesh/inch	Wire Diameter (mm)	Aperture (mm)	Mesh/inch	Wire diameter (mm)	Aperture (mm)
2mesh	1.80	10.90	60mesh	0.15	0.273
3mesh	1.60	6.866	70mesh	0.14	0.223
4mesh	1.20	5.15	80mesh	0.12	0.198
5mesh	0.91	4.17	90mesh	0.11	0.172
6mesh	0.80	3.433	100mesh	0.10	0.154
8mesh	0.60	2.575	120mesh	0.08	0.132
10mesh	0.55	1.990	140mesh	0.07	0.111
12mesh	0.50	1.616	150mesh	0.065	0.104
14mesh	0.45	1.362	160mesh	0.065	0.094
16mesh	0.40	1.188	180mesh	0.053	0.088
18mesh	0.35	1.060	200mesh	0.053	0.074
20mesh	0.30	0.970	250mesh	0.04	0.061
26mesh	0.28	0.696	300mesh	0.035	0.049
30mesh	0.25	0.596	325mesh	0.03	0.048
40mesh	0.21	0.425	350mesh	0.03	0.042
50mesh	0.19	0.318	400mesh	0.025	0.0385
Width of Stainless Steel Wire Mesh: 0.6m-1.5m
